FLEXFIT® 2112

Operating temperature up to +150°C (+302°F)

Expandable tubular sleeve

Excellent abrasion resistance

Excellent flexibility

1:2 Expansion ratio

Self-extinguishing

Fluid resistant

FUNCTIONS:

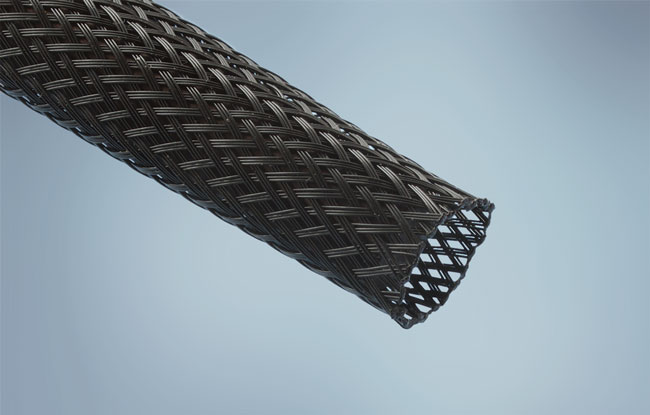

Stacks Image 8083
Open all Close all
  • Product Description
    FlexFit® 2112 is an expandable sleeving specifically designed for the abrasion protection of automotive wire harnesses, cables, tubings and hoses. Its specific structure combines both a high coverage ratio and a high expansion ratio which enables installation over long lengths even after the fitting of end connectors. It also allows a large number of diameters to be covered with a limited range of sizes.

    FlexFit 2112 is constructed of modified polyester monofilaments. This unique construction ensures excellent protection against mechanical abrasion, resistance to common automotive fluids and self-extinguishing properties.
  • Typical Applications

    • Wire Harnesses
    • Hoses and Tubing

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Polyester (PET) monofilament
  • Sizes / Availability

    Standard Sizes

    Nominal Diameter
    mm
    Recommended Application Range
    mm
    Min Ø
    Max Ø
    4
    3
    7
    5
    4
    8
    6
    5
    9
    8
    6
    12
    12
    10
    18
    15
    12
    23
    20
    16
    28
    25
    21
    35
    30
    26
    45
    40
    36
    60
    50
    45
    75
    *Application based variables will influence the sleeve size required. Routing geometry and application type may present installation and fit challenges that should be considered. Max and Min values above are for guidance only. There may be multiple variations of this braid designed to facilitate installation and optimize fit. Proper sleeve sizing should be confirmed by the end user. Please consult your local sales representative for recommendations and support.


    Availability

    Standard sizes are listed here. Additional sizes could be available upon request.

    Available in spools and custom cut lengths. Recommended cut lengths are in 5mm increments. Please see regional drawings for cut length tolerances.

    Standard color is black. Additional colors may be available.

    Please consult your local sales representative for regional packaging details and standards.

  • Product Testing

    Performance Data – FlexFit® 2112

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +150°C (+125°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -70°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    Melt Temperature
    ASTM D3418
    +245°C to +265°C (+473°F to +509°F)
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
