ROUNDIT® 2000 FR

Operating temperature from -50ºC to +150ºC (-58ºF to +302ºF)

Self-wrapping design

Flame resistant

EN45545-2

NFPA 130
   – ASTM E-162
   – ASTM E-662

BSS 7239

SMP 800-C

Zero halogen

Abrasion resistant

Easy to apply and remove

FUNCTION:

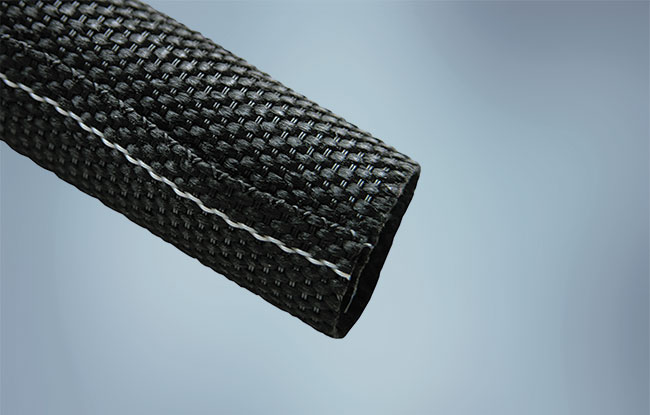

Stacks Image 6847
Open all Close all
  • Product Description

    ROUNDIT® 2000FR is a wrap-around sleeving manufactured from flame- retardant polyester monofilaments and multifilaments, designed for mechanical protection and maintenance of wire and cable bundles. Its construction with 100% covering ratio provides good abrasion resistance.

    The self-wrapping feature of ROUNDIT 2000FR allows for quick and easy installation and removal of the product for assembly and maintenance.

    ROUNDIT 2000FR may be applied and removed without any manipulation of connectors or fittings and offers an innovative solution in areas where breakouts are necessary.

    ROUNDIT 2000FR has many applications in the marine, railway and electronic industries.

  • Installation Features

    • Ideal for bundling without disconnecting components
    • Accommodate break-outs
    • Multifilament construction soft to the cables

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Max Wire Harness Size
    mm (in)
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Max Weight
    g/m (lbs/ft)
    Standard Packaging
    m (ft)
    ROUNDIT 2000 FR 5
    5 (3/16")
    1 (1/32")
    5 (3/16")
    9 (0.006035)
    150 (492')
    ROUNDIT 2000 FR 8
    8 (5/16")
    5 (3/16")
    8 (5/16")
    12 (0.008047)
    100 (328')
    ROUNDIT 2000 FR 13
    13 (1/2")
    8 (5/16")
    13 (1/2")
    18 (0.01207)
    50 (164')
    ROUNDIT 2000 FR 19
    19 (3/4")
    13 (1/2")
    19 (3/4")
    25 (0.016764)
    25 (82')
    ROUNDIT 2000 FR 25
    25 (1")
    19 (3/4")
    25 (1")
    36 (0.02414)
    25 (82')
    ROUNDIT 2000 FR 29
    29 (1-1/8")
    25 (1")
    29 (1-1/8")
    37 (0.024811)
    25 (82')
    ROUNDIT 2000 FR 32
    32 (1-1/4")
    29 (1-1/8")
    32 (1-1/4")
    43 (0.028834)
    25 (82')
    ROUNDIT 2000 FR 38
    38 (1-1/2")
    32 (1-1/4")
    38 (1-1/2")
    54 (0.03621)
    25 (82')
    ROUNDIT 2000 FR 50**
    50 (2")
    38 (1-1/2")
    50 (2")
    75 (0.050292)
    25 (82’)
    ROUNDIT 2000 FR 80**
    80 (3-1/8")
    50 (2")
    80 (3-1/8")
    145 (0.09700)
    25 (82’)

    Nominal size is determined by wrapping the product around a mandrel of a given size to obtain 90 degrees of overlap (average value).

    ** Size 50 mm is made of two sizes 25 sewn together. Size 80 mm is made of 2 sizes 38 mm sewn together

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    ROUNDIT 2000 FR
    13
    0/9 (black with white tracer)
    50m
  • Installation Tools

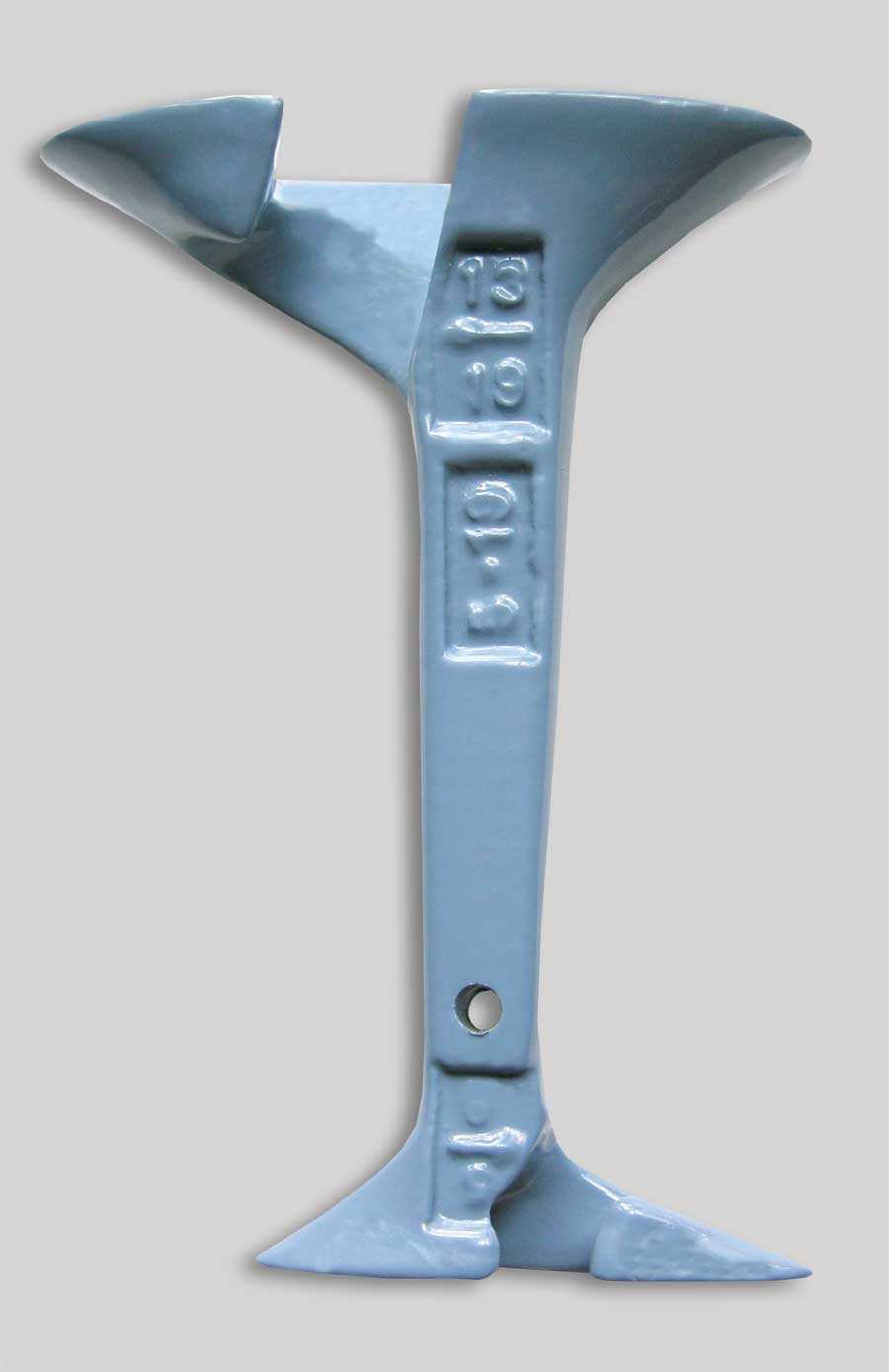

    As an added benefit, the patented ROUNDIT® Tool will help improve installation time and is designed to install ROUNDIT® products on cable and wire configurations.

  • Product Testing

    Performance Data - ROUNDIT® 2000 FR

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature Range
    -50ºC to +150ºC
    (-58°F to +302°F)
    Filament Melt Temperature
    +250°C (+482°F)
    Fire / Smoke / Toxicity
    EN 45545-2
    ASTM E 662 – ASTM E 162
    SMP 800-C – BSS 7239
    R22 HL3 R23 HL3
    Pass
    Pass
    Fluid Resistance
    – Hydraulic fluids: NATO.0.156
    EN 6059-303
    Immersion for 24hrs at +70°C (+158°F)
    No visible degradation or alteration
    after being exposed.

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
