REFLECTWRAP® 1502

Operating temperature up to +150°C (+302°F)

Excellent protection against radiant heat

Flexible

Fluid and chemical resisitant

Low profile

FUNCTIONS:

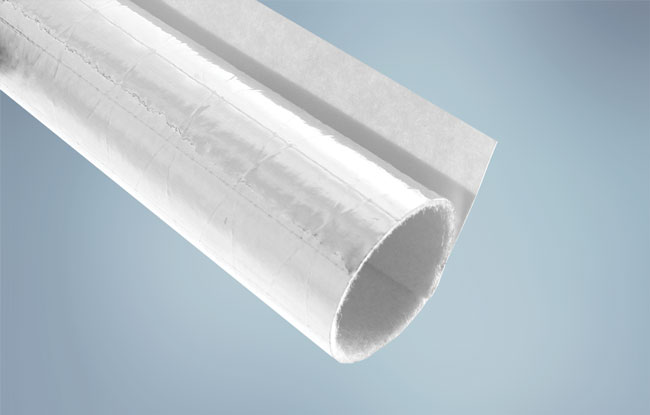

Stacks Image 6847
Open all Close all
  • Product Description
    ReflectWrap® 1502 is a wrappable, aluminized polyester sleeve designed to protect components in high temperature environments. The external surface is composed of a highly reflective aluminum foil, which provides radiant heat protection for internal components. The internal layer is composed of a polyester non-woven material, which provides added insulation efficiency. A layer of fiberglass scrim contributes to both product flexibility and durability. An adhesive seal acts as a barrier to dirt and fluids while maintaining the full integrity of the finished aluminized protective sleeve.

    ReflectWrap 1502 was designed with a combination of materials used to produce an engineered solution for wire harnesses and other components in close proximity to engine and exhaust systems. ReflectWrap 1502 provides a cost-effective, non-skin-irritating alternative to current radiant heat products.
  • Typical Applications

    • Brake tubes and hoses
    • Power steering hoses
    • Cable assemblies
    • Heater hoses
    • Air conditioning hoses
    • Wire Harnesses

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Aluminum Lamination/Scrim

    Inner Layer: Polyester (PET) non-woven
  • Sizes / Availability
    Availability

    ReflectWrap 1502 is available in a range of sizes and cut to your specification. Color is aluminum (silver). Please contact your sales representative for availability.

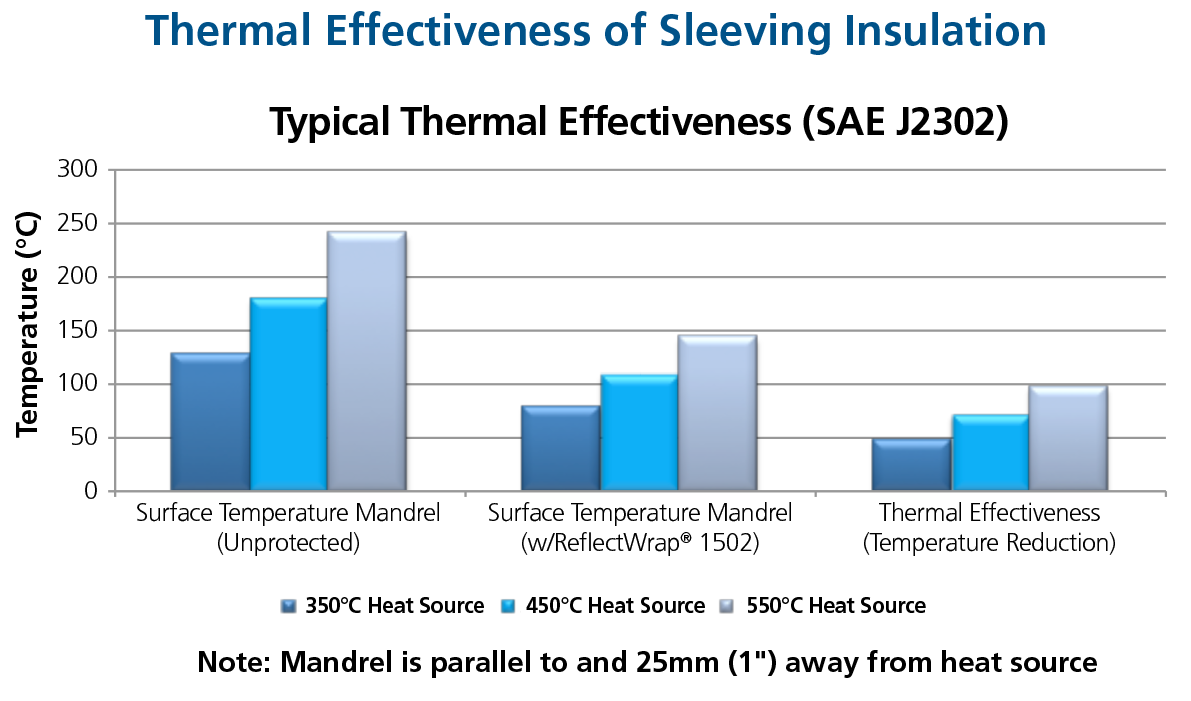

  • Product Testing

    Performance Data – ReflectWrap® 1502

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Thermal Endurance
    BH100-503
    No degradation or delamination
    (25mm above a +538°C heat source for 6 hours)
    Low Temperature Flexibility
    BH100-016A
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self extinguishing
    Fluid Resistance
    BH100-003B
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
