REFLECTSNAP® 1420HD

Operating temperature up to +200°C (+392°F)

Ease of installation due to wrappable construction

Easily accommodates breakouts

Component accessibility for inspection and/or rework

Outstanding protection against radiant heat

Fray resistant

Extremely Flexible

Fluid & chemical resistant

Conforms to complex component designs

FUNCTION:

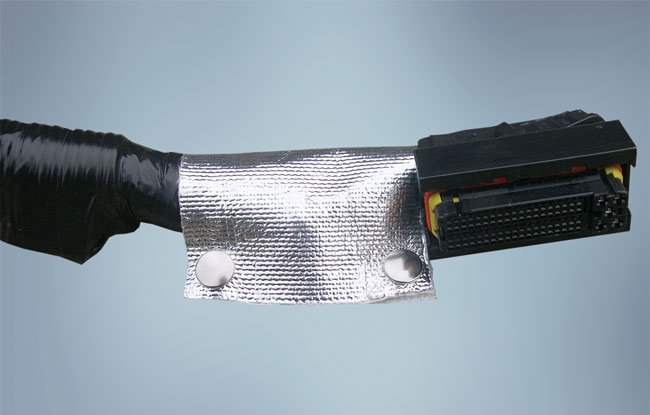

Stacks Image 6847
Open all Close all
  • Product Description
    ReflectSnap® 1420 HD is a flexible, aluminized, wrappable sleeve designed to protect components in high temperature areas. The outer aluminum finish is highly reflective while the inner layer of fiberglass greatly increases insulating efficiency.

    ReflectSnap 1420 HD is constructed of a high-bulk, woven fiberglass fabric with aluminum foil laminated to its outer surface. The product is manufactured with reversible snaps, which allow the product to be installed after components are assembled. To minimize fraying of the fiberglass yarns, the fabric is treated with a high-temperature resin.

    A low-bulk, woven fiberglass version is also available (ReflectSnap 1425 HD).
  • Typical Applications

    • Hoses
    • Fuel and brake lines
    • Control cables
    • Wire harnesses

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Aluminum

    Middle Layer: Fiberglass

    Inner Layer: Copper/Tin Plated Brass
  • Sizes / Availability
    Availability

    ReflectSnap 1420 HD is available in custom designs to meet specific application requirements. Snaps per sleeve are determined by application. Additional fiberglass constructions are also available. Finish is aluminum.
  • Product Testing

    Performance Data – ReflectSnap® 1420HD

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +225°C (+200°C rating)
    Pass +200°C (+392°F)
    Thermal Endurance
    BH100-503
    No degradation or delamination
    (25mm above a +538°C heat source for 6 hours)
    Low Temperature Flexibility
    BH100-016A
    Pass
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    BH100-003B
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
