REFLECTSLEEVE® 1400

Operating temperature up to +150°C (+302°F)

Outstanding protection against radiant heat

Fray resistant

Extremely flexible

Conforms to complex component designs

Tubular construction – no sew lines

FUNCTIONS:

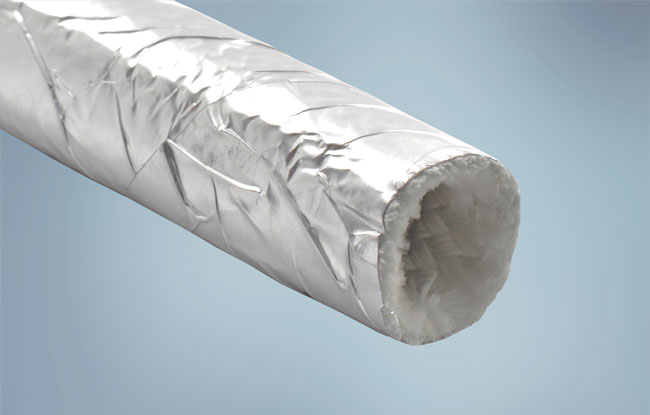

Stacks Image 6847
Open all Close all
  • Product Description
    ReflectSleeve® 1400 is a flexible, aluminized, high bulk, fiberglass sleeve used to protect components in high temperature environments. ReflectSleeve 1400 features an outer layer of spiral wrapped aluminum foil that reflects radiant heat while providing a barrier against moisture and other damaging elements. The inner layer of high bulk fiberglass has natural air pockets which greatly increase insulating efficiency.

    The flexibility and tubular construction of ReflectSleeve 1400 allows for easy installation and conforms to complex component designs.
  • Typical Applications

    • Hoses
    • Fuel Lines
    • Brake Lines
    • Control Cables
    • Wire Harnesses

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Aluminum

    Inner Layer: Fiberglass multifilament
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Nominal Diameter (mm)
    ReflectSleeve 1400 10
    10
    ReflectSleeve 1400 11
    11
    ReflectSleeve 1400 13
    13
    ReflectSleeve 1400 16
    16
    ReflectSleeve 1400 19
    19
    ReflectSleeve 1400 22
    22
    ReflectSleeve 1400 25
    25
    ReflectSleeve 1400 29
    29
    ReflectSleeve 1400 32
    32
    ReflectSleeve 1400 38
    38
    Availability

    Standard sizes are listed here. Additional sizes could be available upon request.

    Available in custom cut lengths. Recommended cut lengths are in 5mm increments.

    Please see regional drawings for cut lengths tolerances. Please consult your local sales representative for regional packaging details and standards.

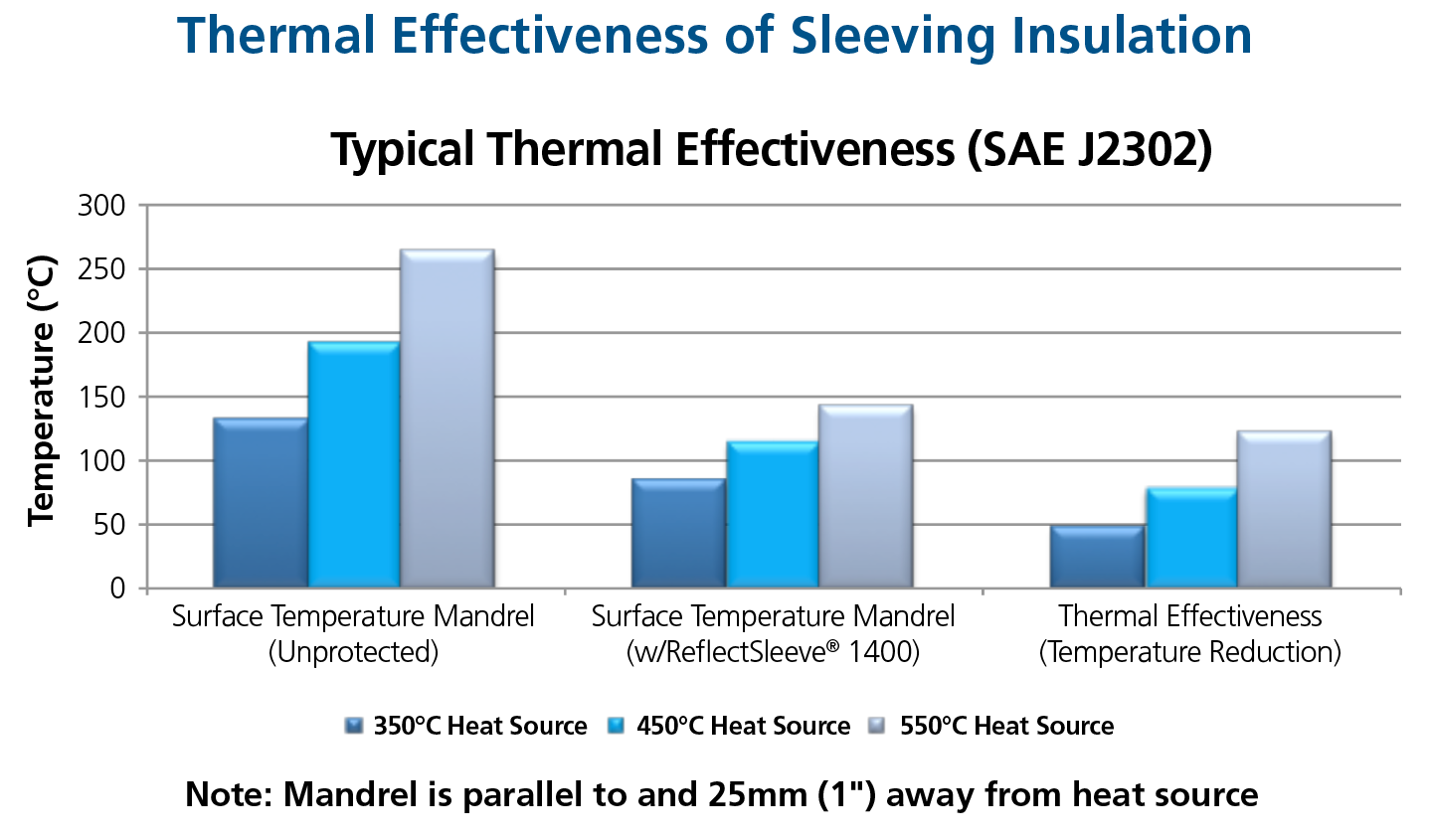

  • Product Testing

    Performance Data – ReflectSleeve® 1400

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Thermal Endurance
    No degradation or delamination
    (25mm above a +538°C heat source for 6 hours)
    Pass
    Low Temperature Flexibility
    SAE J2192
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self extinguishing
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
