EXPANDO® B200

Operating temperature from -55ºC to +200ºC (-67ºF to +392ºF)

Low toxicity, smoke generation, and off-gassing

Highly expandable design for bundling of wire harnesses over short and long lengths

Stable construction once expanded

Time reduction over standard tying methods

Low profile solution

Allows visualization of color coding of cables underneath

Does not trap heat or humidity

Rot-free

FUNCTION:

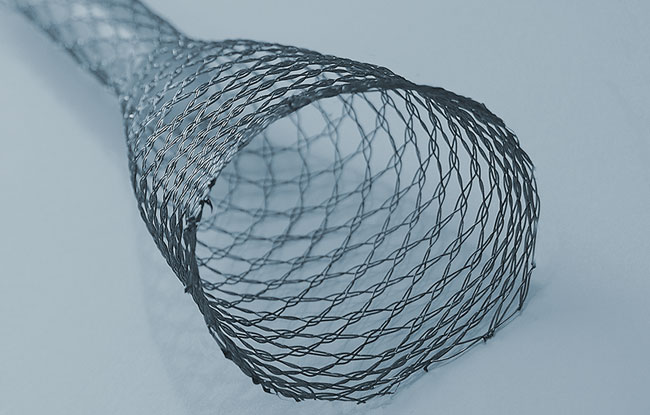

Stacks Image 6847
Open all Close all
  • Product Description
    Expando® B200 is a highly expandable sleeve designed for bundling of wire harnesses. Rated to +200°C (+392°F), Expando® B200 meets FAR25 flame requirements.

    The design of Expando B200 allows the product to remain stable once expanded and its outstanding expansion range allows it to cover wire harness definitions from 3 to 55 mm with only 4 sizes. A special tool has been designed in 2 choices of lengths to speed-up installation over small and long lengths.

    The inherent properties of the raw materials used give Expando B200 low levels of flammability, toxicity and smoke generation. Because of its high operating temperature, Expando B200 resists damage from high temperature air guns used with heat-shrinkable elements such as strain reliefs, terminations and indication sleeves.

    Expando B200 is used in the aerospace industry for its outstanding properties in extreme environments and its quick installation compared to standard tying methods. Expando B200 should be considered for aircraft and space environments.
  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Maximum Opening Diameter
    mm    2 (in)
    Max Weight
    g/m (lbs/ft)
    Standard Packaging
    m (ft)
    Expando B200 6-X
    3 (1/8")
    12 (15/32")
    15 (19/32")
    1.6 (0.0011)
    1200 (3937')
    Expando B200 10-X
    5 (3/16")
    18 (45/64")
    25 (1")
    2.2 (0.0015
    1200 (3937')
    Expando B200 20-X
    15 (19/32")
    28 (1-3/32")
    38 (1-1/2")
    3.5 (0.0023)
    900 (2953')
    Expando B200 40-X
    25 (1")
    55 (2-5/32")
    60 (2-3/8")
    5.1 (0.0034)
    700 (2297')

    NOTE: X = 0 (black); 9 (ivory)

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    Expando B200
    10
    0 (black)
    1200m (3937 ft)
  • Product Testing

    Performance Data - Expando® B200

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    PHYSICAL
    Operating Temperature Range
    -55ºC to +200ºC
    (-67°F to +392°F)
    Flammability / Smoke Density / Toxicity
    F.A.R Part 25 & ABD0031
    Pass
    MECHANICAL
    Vibration
    EN6059-406
    No damage to cables
    CHEMICAL
    Hydrolysys
    EN2591-515
    Method B Pass
    Sunlight Exposure
    EN6059-301
    Pass
    Fluid Resistance
    • Jet Fuel JP5 (NATO F44)
    • Hydraulic Fluid Skydrol 500 B4, Skydrol LD4 (AS1241 C)
    • Mineral Lubricant MIL-PRF-7870C (NATO 0-142)
    • Synthetic Lubricant MIL-PRF-23699F (NATO 0-156) + 75% White Spirit, Azeotropic R113 AZM (R113 + methanol)
    • De-Ice Fluid MIL-A-8243D (NATO S742)
    EN 6059-305
    No visible degradation.
    Maintains >50% of initial tensile strength
    Mold Growth
    EN 6059-306
    Pass

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
