TWISTTUBE® 2424XT

Operating temperature up to +150°C (+302°F)

High level of abrasion resistance

Self-wrapping tubular design

Extremely lightweight

Used to identify critical components

FUNCTION:

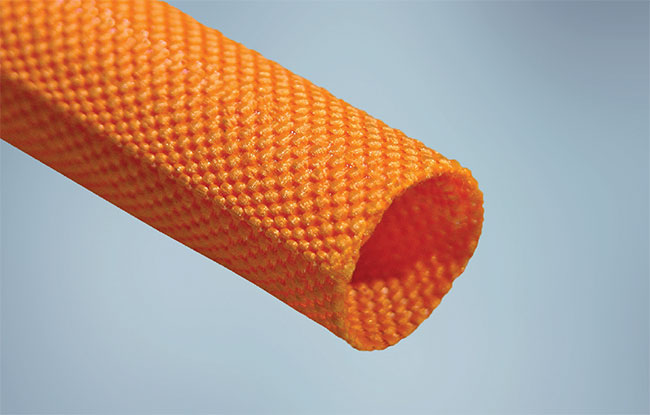

Stacks Image 6847
Open all Close all
  • Product Description
    TwistTube® 2424XT is a self-wrapping sleeve designed to provide mechanical protection and acoustical noise suppression. Woven of both monofilament and multifilament polyester yarns the product offers a high level of component protection and is both flexible and lightweight. Colored orange, TwistTube 2424XT is commonly used to identify high voltage cables in hybrid vehicles.

    The polyester construction eliminates problems associated with trapped heat and humidity and also eliminates operator skin irritation during assembly.

    TwistTube 2424XT offers superior abrasion protection and maintains a circular profile when flexed. Its self-wrapping design allows for quick and easy bundling of wire and cable assemblies. The unique design easily allows for breakouts and can be installed over completed assemblies.
  • Typical Applications

    • Instrument panel harnesses
    • Engine compartment harnesses
    • High voltage cables
    • Hybrid vehicles

  • Datasheet Downloads
  • Sizes / Availability
    TwistTube 2424XT is available in a range of sizes and cut to your specification. Color is orange. Please contact your sales representative for availability
  • Installation Tools

    There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.

  • Product Testing

    Performance Data - TwistTube® 2424XT

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hrs at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    BH100-016A
    Pass -50°C (-58°F)
    Flammability
    FMVSS 302
    D45 1333
    Pass
    Self-extinguishing Type B
    Fluid Resistance
    D47 1924
    No visible degradation or alteration after being exposed to the following test cycles:

    • Immersion for 15s at +22°C, followed by a drying period of 24h at +150°C: motor oil, protection oil, automatic transmission fluid, mineral hydraulic fluid, zinc chloride (drying at +23°C).

    • Immersion for 2hrs at +70°C (in vapor) followed by a drying period of 4hrs at +23°C: battery fluid

    • Immersion for 24hrs at +70°C: windscreen washer and at +118°C: engine coolant

    • Immersion for 24hrs at +40°C: standard fuel, unleaded petrol 98, diesel
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
