TWISTTUBE® 2426

Operating temperature up to +150°C (+302°F)

Self-wrapping tubular design

Easy to install

Excellent noise suppression

High level of abrasion resistance

High flexibility

Extremely lightweight

FUNCTION:

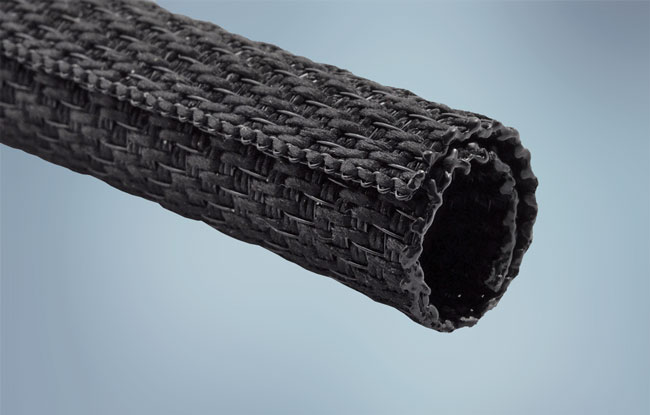

Stacks Image 6847
Open all Close all
  • Product Description
    TwistTube® 2426 is a self-wrapping sleeve designed to provide excellent edge abrasion protection and noise suppression. Woven of both monofilament and multifilament polyester yarns the product offers a high level of component protection and is both flexible and lightweight. The polyester construction eliminates problems associated with trapped heat and humidity and also eliminates operator skin irritation during assembly.

    TwistTube 2426 provides superior edge abrasion protection when compared against traditional convolute/tape protection. The textile structure was engineered to provide a high level of abrasion protection yet be less aggressive or less damaging than convolute on the internally protected component when exposed to dirt, grime and vibration. The self wrapping design allows for quick and easy bundling of wire and cable assemblies. The unique design easily allows for breakouts and can be installed over completed assemblies.
  • Typical Applications

    • Roof harnesses
    • Instrument panel harnesses
    • Engine compartment harnesses
    • Underbody wire harnesses
    • Seat wire harnesses
    • Tubing, hose, and cable assemblies

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Nominal Diameter (mm)
    Recommended Application Range (mm)
    Min Ø
    Max Ø
    5

    1

    5
    8

    5

    8
    10

    8

    10
    13

    10

    13
    16

    13

    16
    19

    16

    19
    25

    19

    25
    29

    25

    29
    32

    29

    32
    38

    32

    38

    Max diameter is defined as a nominal 90° sleeve overwrap. A variety of application-based variables will dictate the appropriate sleeve size for use on each harness. Proper sleeve sizing is at the discretion of the end user.

    A reduced overlap could be acceptable in certain applications allowing for a larger max diameter harness. Please consult your local sales representative for recommendations and guidance.

  • Installation Tools

    There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.

  • Product Testing

    Performance Data - TwistTube® 2426

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hrs at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -70°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    Limited Oxygen Index (LOI)
    JIS K 7201
    23.5 < LOI < 30.3
    Noise Suppression
    SAE J2192
    Rubbing: >15dB
    Rattling: >35dB
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
