REFLECTUBE® 1597J

Operating temperature up to +150°C (+302°F)

Reflects radiant heat away from protected component

Reduces component temperature

Enhances harness rigidity

Fluid resistant

FUNCTION:

Stacks Image 6847
Open all Close all
  • Product Description

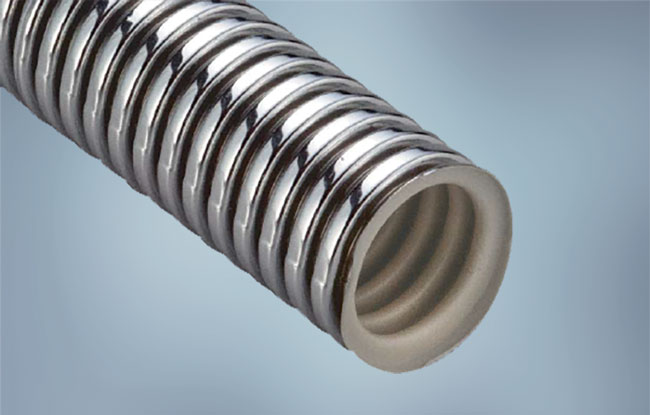

    ReflecTube® 1597J is a reflective convolute tube designed to provide thermal protection for components in radiant heat environments. Composed of a modified nylon polymer base substrate and a highly reflective aluminum coating, ReflecTube 1597J provides protection for wires, cables, hoses and other components requiring radiant heat protection in close proximity to engine and exhaust systems.

    The reflective surface is extremely resistant to automotive fluids and may be classed as insulative against 12 volt automotive currents. Because of its unique blend of thermal and insulative properties, as well as its aesthetic appearance, it is ideal for applications such as battery cables and alternator wiring harnesses.
  • Typical Applications

    • Battery cables
    • Wiring systems
    • Electronic sensor control wiring
    • Critical harnesses and hoses exposed to radiant heat

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Exterior Surface: Highly reflective aluminum coating

    Substrate Surface: Nylon 9T (PA9T)
  • Sizes / Availability
    Availability

    ReflecTube® 1597J is available in a range of sizes and cut to your specification. Color is aluminum (silver). Please contact your sales representative for availability
  • Product Testing

    Performance Data – ReflecTube® 1597J

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    BH100-504
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    BH100-016A
    Pass -40°C (-40°F)
    Flammability
    FMVSS 302
    Self-extinguishing
    Fluid Resistance
    BH100-003B
    Pass
    Melting Point
    ASTM D3418
    +261°C to +267°C (+502°F to +513°F)
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
