FLEXGUARD® 2135

Operating temperature up to +200°C (+392°F)

Excellent abrasion resistance

High temperature resistance

Highly flexible and easy to install

Lightweight and breathable textile design

Outstanding fluids resistance

FUNCTIONS:

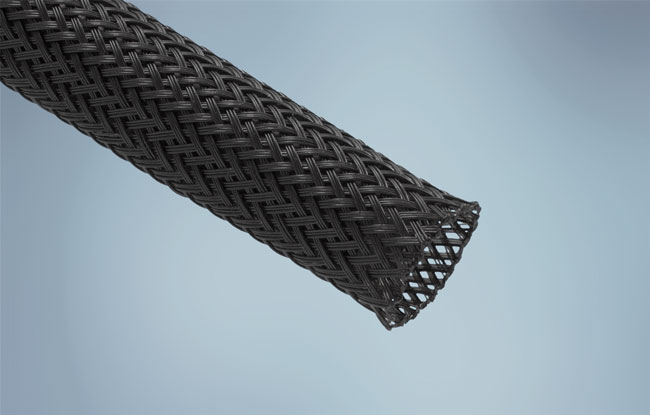

Stacks Image 8083
Open all Close all
  • Product Description
    FlexGuard® 2135 is an expandable sleeve designed to provide mechanical protection for applications exposed to higher temperature environments. Constructed of PEEK (polyetheretherketone) monofilament guard strands and PPS (polyphenylene sulfide) support strands, this dual-monofilament blend provides an excellent balance of abrasion resistance, temperature resistance and installability.

    Expanding up to three times its diameter, FlexGuard 2135 is easy to install and can accommodate a wide range of application sizes. The breathable textile construction allows fluids drainage and heat dissipation as well as prevents condensation.
  • Typical Applications

    • Hose & Tubing Applications
    • Cable Assemblies
    • Wire Harnesses

  • Datasheet Downloads

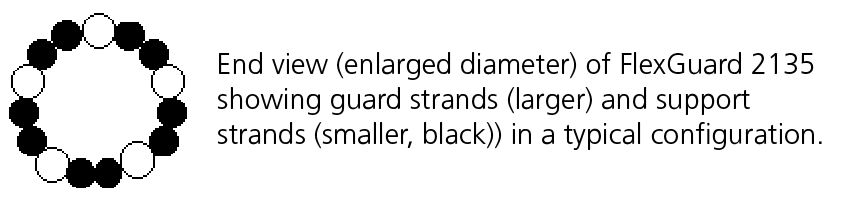

  • Construction and Typical Product Characteristics
    Abrasion Guard Yarn: Polyetheretherketone (PEEK) monofilament (Shown in white)

    Resilient Support Yarn: Polyphenylene sulfide (PPS) monofilament (Shown in black)
  • Sizes / Availability

    Standard Sizes

    Product Name
    Nominal Diameter
    (mm)
    Recommended Application Range
    (mm)
    Min Ø
    Max Ø
    FlexGuard 2135
    3
    2
    6
    FlexGuard 2135
    6
    3
    10
    FlexGuard 2135 TW
    6
    3
    8
    FlexGuard 2135 TTW
    6
    3
    6
    FlexGuard 2135 TW
    10
    5
    12
    FlexGuard 2135 TW
    13
    6
    13
    FlexGuard 2135 TTW
    13
    6
    13
    FlexGuard 2135
    16
    10
    30
    FlexGuard 2135
    19
    13
    35
    FlexGuard 2135
    32
    19
    45
    FlexGuard 2135
    51
    38
    69
    FlexGuard 2135
    64
    48
    76
    Color: Black

    Abrasion Levels:
    • Standard: Good
    • TW: Better
    • TTW: Best
    Availability

    Standard sizes are listed here. Additional sizes could be available upon request.

    Available in spools and custom cut lengths. Recommended cut lengths are in 5mm increments. Please see regional drawings for cut length tolerances.

    Standard colors listed below table. Additional colors may be available.

    Please consult your local sales representative for regional packaging details and standards.
  • Product Testing

    Performance Data – FlexGuard® 2135

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +225°C (+200°C rating)
    Pass +200°C (+392°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
