ROUNDIT® 2000NX PTR

Operating temperature from -60ºC to +200ºC (-76ºF to +392ºF)

Pink tracer identifying fuel lines

ASD EN 6049-006

S8021

Excellent cut-through and abrasion resistance

Halogen-free

Self-wrapping design

Ideal for reworking components without disconnecting them

Lightweight construction

Ivory tracer indicating the maximum operating diameter

Aesthetic solution

Water repellent

FUNCTION:

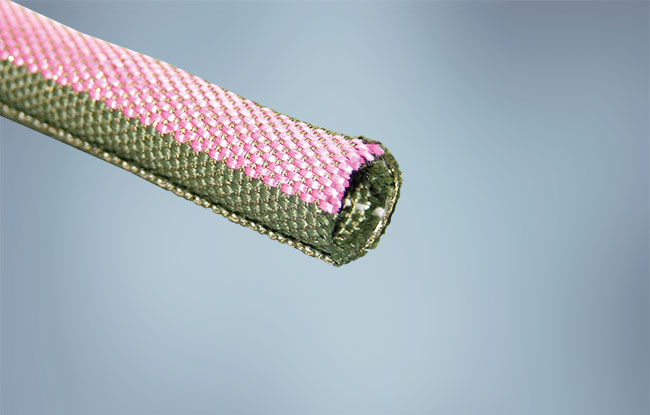

Stacks Image 6847
Open all Close all
  • Product Description

    ROUNDIT® 2000 NX Ptr is a self-wrapping sleeve manufactured from PPS monofilaments and Nomex® multiflaments with a water repellent treatment, designed for mechanical protection and maintenance of wire and cable bundles. This design allows for 100% coverage providing excellent cut-through and abrasion resistance.

    The self-wrapping feature allows for quick and easy installation and removal of the product for assembly and maintenance. ROUNDIT 2000 NX Ptr also accommodates breakouts.

    ROUNDIT 2000 NX with a pink tracer was designed for easy identification of fuel lines.

    ROUNDIT 2000 NX Ptr has many applications in the aeronautical and military industries.

    Nomex is a registered trademark of E.I. DuPont de Nemours.

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Max Weight
    g/m (lbs/ft)
    Standard Packaging
    m (ft)
    ROUNDIT 2000 NX Ptr 5-5/29

    1 (1/32")

    5 (3/16")

    13 (0.009)

    150 (492')
    ROUNDIT 2000 NX Ptr 8-5/29

    5 (3/16”)

    8 (5/16”)

    18 (0.012)

    100 (328’)
    ROUNDIT 2000 NX Ptr 13-5/29

    8 (5/16”)

    13 (1/2”)

    26 (0.017)

    50 (164’)
    ROUNDIT 2000 NX Ptr 19-5/29

    13 (1/2”)

    19 (3/4”)

    38 (0.026)

    25 (82’)
    ROUNDIT 2000 NX Ptr 25-5/29

    19 (3/4”)

    25 (1”)

    47 (0.032)

    25 (82’)
    ROUNDIT 2000 NX Ptr 32-5/29

    25 (1")

    32 (1-1/4”)

    65 (0.0398)

    25 (82’)
    ROUNDIT 2000 NX Ptr 40-5/29

    32 (1-1/4”)

    40 (1-1/2”)

    90 (0.0602)

    25 (82’)

    Nominal size is determined by wrapping the product around a mandrel of a given size to obtain 90 degrees of overlap (average value).

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    ROUNDIT 2000 NX Ptr
    8
    5/29 (green with pink tracer)
    100m
  • Installation Tools

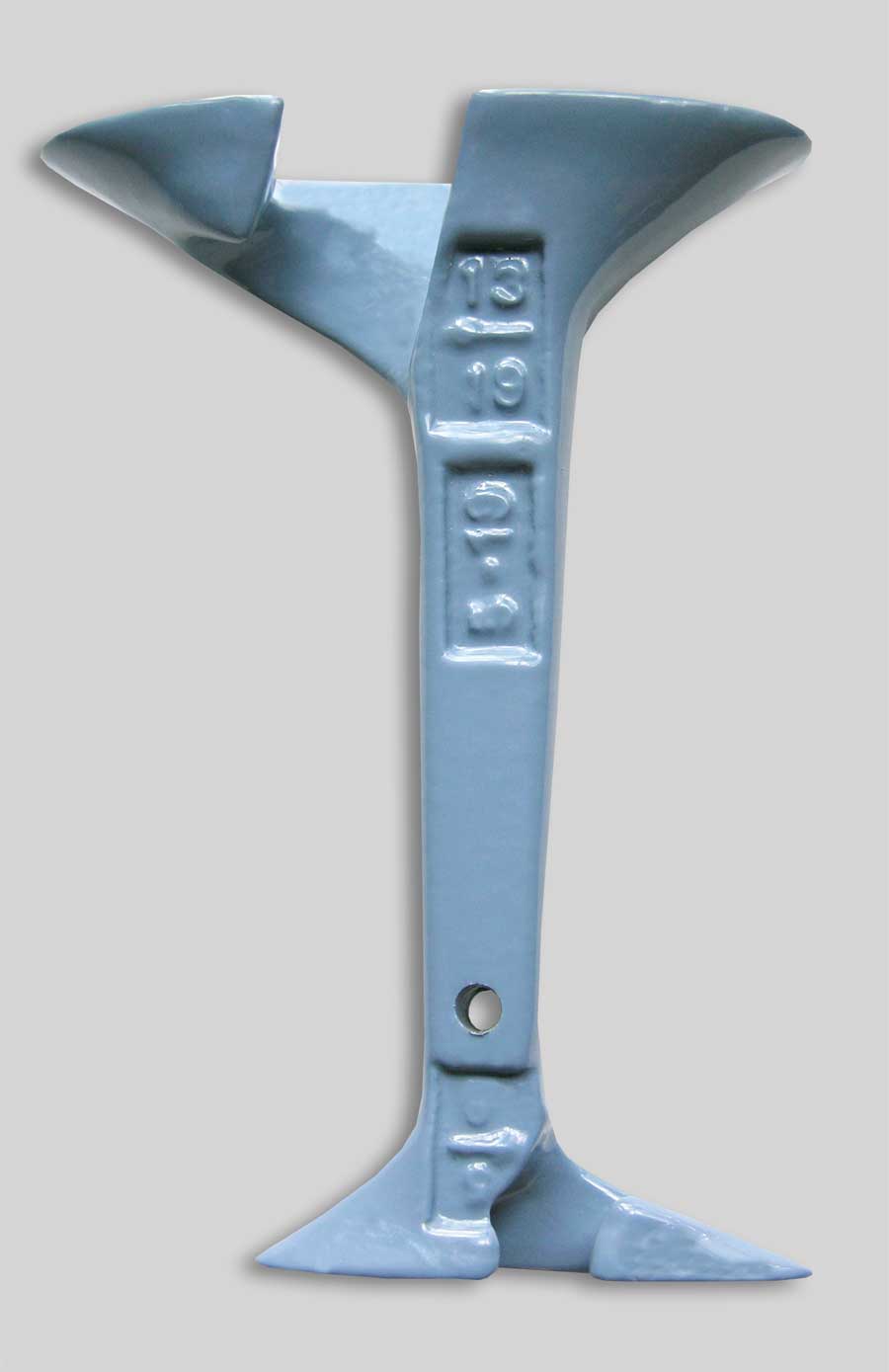

    As an added benefit, the patented ROUNDIT® Tool will help improve installation time and is designed to install ROUNDIT® products on cable and wire configurations.

  • Product Testing

    Performance Data - ROUNDIT® 2000 NX Ptr

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    PHYSICAL
    Operating Temperature Range
    Thermal endurance & shocks


    For a short period (few hours)
    -60ºC to +200ºC (-76°F to +392°F)
    After 168h at 200ºC, pink tracer fades slightly

    +220ºC (+428°F)
    Heat stability
    DMS 2379 § 4.5.9
    Pass
    MECHANICAL
    Abrasion Resistance
    EN 6059 Part 403
    Pass
    Dynamic Cut-through
    EN 6059 Part 405
    Pass
    Vibration
    DO 160B
    No cable abrasion
    CHEMICAL
    Flammability
    DMS 1511
    Far Part 25
    Pass
    Pass
    Smoke density
    ASTM F814
    ASTM E662
    Pass
    Dmax <50
    Vacuum stability
    ASTM E595
    TML 1.89%
    CVCM 0.18%
    WVR 1.60
    Fluid Resistance
    – Jet Fuel: JP-4 (MIL-T-5024)
    – Hydraulic Fluid (Rayco 782, MIL-H-83282)
    – Hydraulic Fluid (Skydrol LD4, DMS 2014, Type 4 Class 1
    – Isopropyl Alcohol (TT-I-735)
    DMS 2379 § 4.5.7

    Pass
    Pass
    Pass
    Pass (pink tracer fades slightly)

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
