TST / TSX

Operating temperature from -60ºC to +950ºC (-76ºF to +1742ºF)

Up to +1100°C (+2012°F) peak temperature

Expandable

Lightweight

Good radiation resistance

Flexible

FUNCTION:

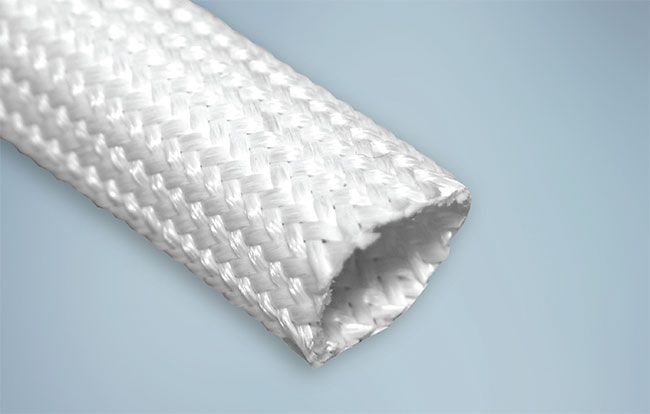

Stacks Image 6847
Open all Close all
  • Product Description
    TST/TSX is a high temperature resistant, multifilament pure silica fibre (>99,8%) braided sleeving. It has a continuous working temperature of –60°C to +950°C.

    TST sleeve is heat-treated to remove organic content. This heat treatment confers excellent thermal properties to the sleeving, thus offering an excellent thermal barrier against heat, fire, molten metal splashes and other projections.

    The TSX sleeve has an additional impregnation disappearing above +300°C which prevents end fray and skin irritation when cut.

    TST/TSX are both fireproof and radiation-proof.

    TST/TSX are mainly used in the aircraft, railway, iron and steel, off-shore and nuclear industries.
  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Max Weight
    g/m (lbs/ft)
    Standard Packaging
    m (ft)
    TST / TSX 0.5 - 9
    0.5 (1/64")
    0.8 (1/32")
    2.1 (0.001)
    200 (656')
    TST / TSX 1 - 9
    1 (1/32")
    1.4 (3/64")
    3.2 (0.002)
    200 (656')
    TST / TSX 2 - 9
    2 (1/16")
    2.4 (3/32")
    4.2 (0.003)
    200 (656')
    TST / TSX 4 - 9
    4 (1/8")
    5 (3/16")
    7.4 (0.005)
    200 (656')
    TST / TSX 6 - 9
    6 (1/4")
    7 (9/32")
    11.6 (0.008)
    200 (656')
    TST / TSX 8 - 9
    8 (5/16")
    9 (11/32")
    15.8 (0.011)
    200 (656')
    TST / TSX 10 - 9
    10 (3/8")
    11 (7/16")
    21.0 (0.014)
    200 (656')
    TST / TSX 12 - 9
    12 (7/16")
    13 (1/2")
    22.1 (0.015)
    200 (656')
    TST / TSX 14 - 9
    14 (9/16")
    15 (9/16")
    25.2 (0.017)
    200 (656')
    TST / TSX 16 - 9
    16 (5/8")
    17 (11/16")
    28.4 (0.019)
    200 (656')
    TST / TSX 20 - 9
    20 (3/4")
    21 (13/16")
    35.7 (0.024)
    100 (328')
    TST / TSX 25 - 9
    25 (1")
    26 (1-1/32")
    52.5 (0.035)
    100 (328')
    TST / TSX 35 - 9
    35 (1-3/8")
    36 (1-7/16")
    80.9 (0.054)
    100 (328')

    Longitudinal shrinkage should be taken into account when utilizing expansion properties of the sleeve

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    TSX
    4
    9 (natural white)
    100m (328')
  • Product Testing

    Performance Data - TST / TSX

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    -60ºC to +950ºC (-76°F to +1742°F)
    Up to +1100°C (+2012°F) peak temperature
    Gamma Ray Resistance
    3500 gray/h
    Excellent resistance to gamma rays, Unaffected by UV & IR rays
    Silica Purity
    Silica fiber purity >99.8%
    Fluid Resistance
    EN 6059-303
    Very good resistance to solvents

    Very good resistance to concentrated acids,
    except for hydrochloric & phosphoric acids
    Flammability
    FAR Part 25 § 853
    Pass
    Humidity Resistance
    Moisture absorption <0.5%
    Salt Spray Resistance
    EN 2591-307 - 500 hrs.
    Pass

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
