QUIETSLEEVE® 3450

Operating temperature up to -50°C to +150°C (-58°F to +302°F)

Expandable tubular sleeve

Excellent noise suppression

Extremely lightweight

Highly expandable

Self-extinguishing

FUNCTIONS:

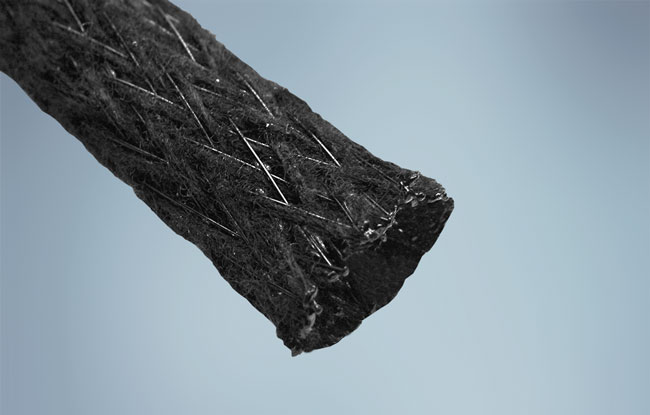

Stacks Image 8083
Open all Close all
  • Product Description
    QuietSleeve® 3450 is a highly flexible, light and expandable sleeving used to suppress noise on wire harnesses and cables.

    QuietSleeve 3450 is braided from a combination of monofilament polyester strands and textured multifilament polyester yarns. When installed on wire harnesses and cables, this construction provides a sound dampening and anti-rattle effect greatly reducing the noise generated by vehicle vibration.

    QuietSleeve 3450 is easy to apply and one size fits many applications since it readily expands. In addition, the open weave construction prevents condensation.

    The carefully calculated mix of strands provides a balance of key features including flexibility, expandability, and noise suppression. These features optimize the handling properties of the sleeving and assure a longer service life for the final assembly.
  • Typical Applications

    • Body wiring harnesses
    • Instrument panel and control assemblies
    • Door lock rods

  • Datasheet Downloads
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Recommended Application Range
    (mm)
    Min Ø
    Max Ø
    Max Diameter Expansion
    (mm)
    Standard Packaging
    (m)
    QuietSleeve 3450 3
    1
    4
    7
    1000
    QuietSleeve 3450 6
    2
    6
    15
    800
    QuietSleeve 3450 14
    6
    10
    20
    700
    QuietSleeve 3450 18
    10
    14
    30
    600
    QuietSleeve 3450 22
    12
    16
    48
    500
    Availability

    QuietSleeve 3450 is available in a range of sizes from 3 mm to 22 mm.

    Standard color is black. QuietSleeve 3450 is available only cut to the following specifications:

    • Recommended standard cut length are in 5 mm increments.

    Packaging is in accordance with GALIA Standards (ODETTE).
  • Product Testing

    Performance Data – QuietSleeve® 3450

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    ISO 6722-1
    -50°C to +150°C (-58°F to +302°F)
    Heat Aging: 3000hrs @ +150°C
    ISO 6722
    Neither any visible degradation or loss of flexibility
    Shrinkage < 10%
    Flammability
    FMVSS 302
    D45 1333
    Pass
    Self-extinguishing, Type B
    Fluid Resistance
    D47 1924
    No visible degradation or alteration after being exposed to the following test cycles:
    • Immersion for 15s at 23°C, followed by a drying period of
      • 24h at 150°C: motor oil, automatic transmission fluid, mineral hydraulic fluid.
      • 24h at 23°C: zinc chloride, brake fluid.
    • Immersion for 48h at 70°C, followed by a drying period of 24h at 23°C: Urea of clean up Ad blue.
    • Immersion for 24h
      • At 40°C, followed by a drying period of 4h at 23°C: for gazole, unloaded petrol 98, Std fuel C +15% methanol, E85 bio ethanol.
      • At 70°C, followed by a drying period of 4h at 23°C, for windscreen washer.
      • At 118°C, by a drying period of 4h at 23°C, for engine coolant.
    Rubbing Efficiency
    SAE J2192
    -21 db(A)
    Rattling Efficiency
    SAE J2192
    -45 db(A)
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
