EXPANDO® TCP V0

Operating temperature -50ºC to +150ºC (-58ºF to +302ºF)

1:2 expansion ratio

Self extinguishable

EN45545-2

NFPA 130
   – ASTM E-162
   – ASTM E-662

BSS 7239

SMP 800-C

Zero halogen

Excellent abrasion resistance

FUNCTION:

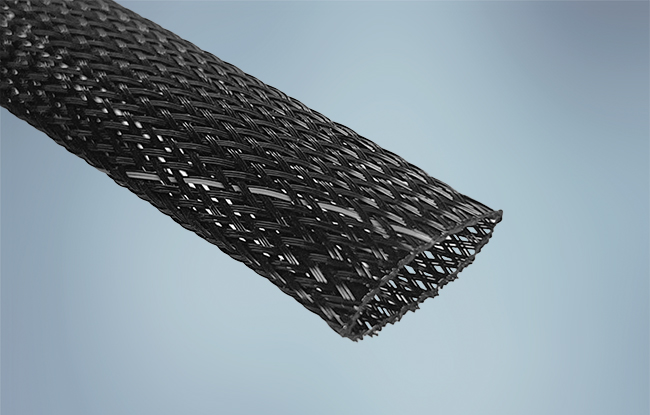

Stacks Image 6847
Open all Close all
  • Product Description
    Expando® TCP V0 is an expandable braided sleeve manufactured from polyester monofilaments which are offering excellent flame retardant properties. It is designed for the protection of tubing and the maintenance of wire and cable bundles.

    This product has a highly expandable structure which allows for easy installation over long lengths even after the fitting of end connectors. Expando TCP V0 has an expansion ratio which enables a large number of diameters to be covered with a limited range of sizes.

    The product is used in a wide range of industries including railway and electrical / electronical devices.
  • Installation Features

    • Flexible
    • Bundling solution

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Recommended Application Range
    mm (in)
    Min Ø
    Max Ø
    Packaging
    m (ft)
    Standard Packaging
    Jumbo Packaging
    Expando TCP V0 5
    4 (5/32")
    8 (5/16")
    200 (656')
    1000 (3280')
    Expando TCP V0 6
    5 (13/64”)
    9 (23/64”)
    200 (656')
    1000 (3280')
    Expando TCP V0 8
    6 (1/4”)
    12 (15/32”)
    200 (656')
    500 (1640')
    Expando TCP V0 10
    7 (9/32”)
    15 (19/32”)
    100 (328')
    500 (1640')
    Expando TCP V0 12
    10 (25/64”)
    18 (45/64”)
    100 (328')
    500 (1640')
    Expando TCP V0 15
    12 (15/32”)
    23 (29/32”)
    50 (164')
    400 (1312')
    Expando TCP V0 20
    16 (5/8”)
    28 (1”)
    50 (164')
    400 (1312')
    Expando TCP V0 25
    21 (53/64”)
    35 (1-3/8”)
    50 (164')
    400 (1312')
    Expando TCP V0 30
    26 (1”)
    45 (1-3/4”)
    50 (164')
    300 (984')
    Expando TCP V0 40
    36 (1-1/2”)
    60 (2-23/64”)
    50 (164')
    300 (984')
    Expando TCP V0 50
    45 (1-3/4”)
    75 (3”)
    50 (164')
    200 (656')

    Longitudinal shrinkage should be taken into account when utilizing expansion properties of the sleeve

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    Expando TCP V0
    10
    0/8 (black with gray tracer)
    500m (1640 ft)
  • Product Testing

    Performance Data - Expando® TCP V0

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature Range
    -50ºC to +150ºC
    (-58°F to +302°F)
    Fire / Smoke / Toxicity
    EN 45545-2
    ASTM E 662 – ASTM E 162
    SMP 800-C – BSS 7239
    R22 HL3 R23 HL3
    Pass
    Pass
    Fluid Resistance
    – Hydraulic fluids: NATO.0.156
    EN 6059-303
    Immersion for 24hrs at +70°C (+158°F)
    No visible degradation or alteration
    after being exposed.

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
