THERMSHIELD™ 1229

Operating temperature up to +650°C (+1202°F)

Peak temperature +750°C (+1382°F)

Excellent thermal insulation

Extremely flexible

Conforms to component

Low profile

Highly customizable design

FUNCTION:

Stacks Image 8119
Stacks Image 6847
Open all Close all
  • Product Description

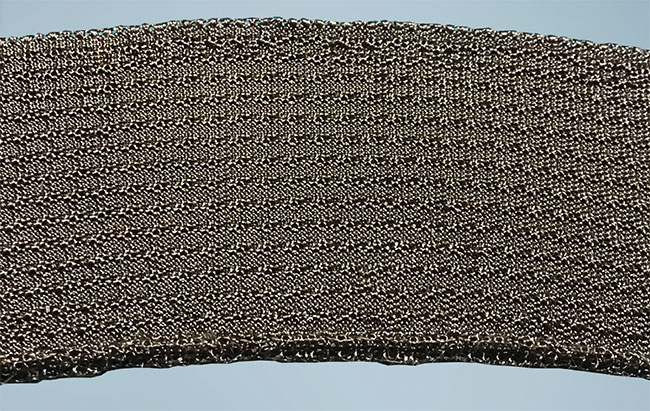

    ThermShield™ 1229 is a knitted fabric developed for insulation of high temperature exhaust systems. Designed with basalt yarns, ThermShield 1229 can withstand temperatures up to +750ºC (+1382ºF).

    The high degree of insulation provided by ThermShield 1229 enables exhaust gas to maintain temperature as it moves through the exhaust system. Maintenance of exhaust gas temperature is important in order to ensure complete conversion of exhaust gas and particulates. Complete conversion is necessary to meet the increasingly strict emission regulations set in place by government mandate.

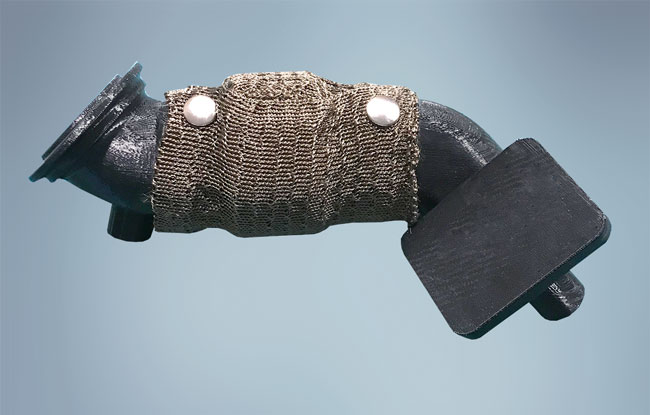

    With a highly customizable design, ThermShield 1229 can be tailored to increase durability and expandability, contour around bends, accommodate brackets/breakouts/sensors/etc., and have distinct areas of variable performance.
    ThermShield 1229’s customized designs are available with snaps for increased installation benefit.
  • Datasheet Downloads
  • Availability
    Availability
    ThermShield 1229 is a highly customizable product and is available in various designs to meet specific application requirements. Please contact your sales representative for availability.
  • Product Testing

    Performance Data - ThermShield™ 1229

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    PHYSICAL
    Thermal Endurance
    BH100-521
    Pass - No degradation
    Cold / Wet Endurance
    BH100-522
    Pass - No degradation
    Thermal Containment
    BH100-509
    Product performance is design dependent.
    Please contact your sales representative for
    application specific performance.
    Flammability
    SAE J369
    D45 1333
    Does not ignite
    Type A - no ignition
    Vibration Resistance
    BH100-507
    Retains structural integrity
    CHEMICAL
    Fluid Resistance
    BH100-003F
    • 50/50 Antifreeze/Distilled Water
    • 5% NaCl
    • Transmission Fluid
    • Diesel Fluid LSRD-4
    • ASTM Reference Fuel C
    • SAE 5W30
    • Brake Fluid SAE RM-66
    • Power Steering Fluid
    • Windshield Washer Fluid
    No degradation or loss of quality
    Salt Spray
    ASTM G85
    Pass
    RESISTANCE TO WASHING
    Power Washing Endurance
    BH100-539
    No degradation

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
