FYREJACKET® INDUSTRIAL

Operating temperature -54ºC to +260ºC (-65ºF to +500ºF)

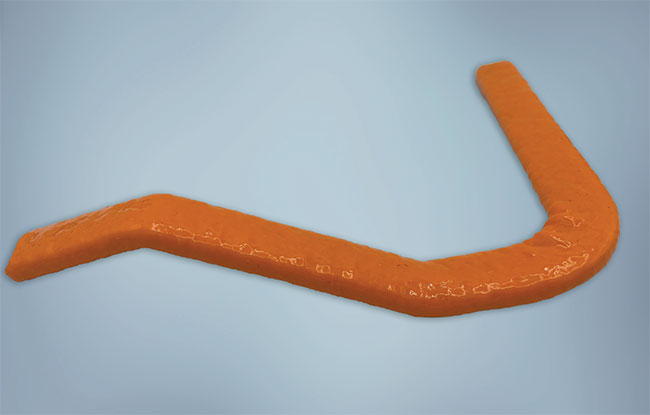

Highly flexible

FUNCTION:

Stacks Image 6847
Open all Close all
  • Product Description

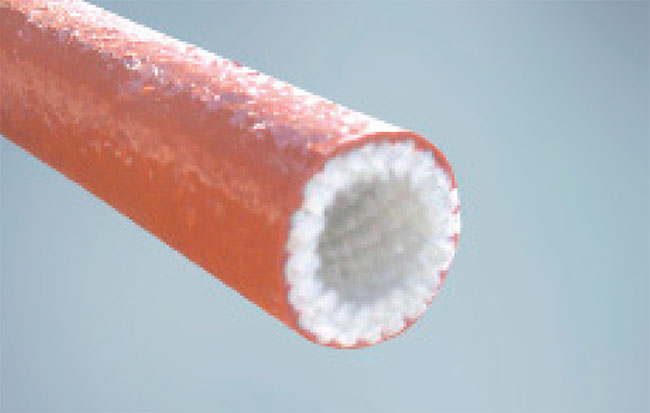

    FyreJacket® Industrial is a thickwall, knitted fiberglass sleeving with an external coating of flame retardant silicone rubber. This product can be easily installed on cables and hoses.

    FyreJacket Industrial provides effective protection against sustained high temperatures, flames and molten metal splashes that can seriously damage electrical cables and hydraulic, gas and lubricant supply lines.

    This product is used in the steel and petrochemical industries to protect against internal and external hazards, especially to prevent hand touching from hot lines.
  • Typical Applications

    • Hydraulic hoses
    • Steel cables

  • Datasheet Downloads
  • Support Documentation
    There are no support documents available at this time. Please contact your sales representative or distribution team for further support.
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Nominal Diameter
    mm (in)
    Minimum Diameter
    mm (in)
    Standard Packaging
    m (ft)
    FyreJacket Industrial 4-X
    6 (1/4")
    5 (3/16")
    15 (50')
    FyreJacket Industrial 5-X
    8 (5/16”)
    6 (1/4")
    15 (50')
    FyreJacket Industrial 6-X
    10 (3/8”)
    8 (5/16”)
    15 (50')
    FyreJacket Industrial 7-X
    11 (7/16”)
    10 (3/8”)
    15 (50')
    FyreJacket Industrial 8-X
    13 (1/2”)
    11 (7/16")
    15 (50')
    FyreJacket Industrial 9-X
    14 (9/16”)
    13 (1/2")
    15 (50')
    FyreJacket Industrial 10-X
    16 (5/8”)
    14 (9/16”)
    15 (50')
    FyreJacket Industrial 11-X
    18 (11/16”)
    16 (5/8”)
    15 (50')
    FyreJacket Industrial 12-X
    19 (3/4”)
    18 (11/16”)
    15 (50')
    FyreJacket Industrial 13-X
    21 (13/16”)
    19 (3/4”)
    15 (50')
    FyreJacket Industrial 14-X
    22 (7/8”)
    21 (13/16”)
    15 (50')
    FyreJacket Industrial 15-X
    24 (15/16”)
    22 (7/8”)
    15 (50')
    FyreJacket Industrial 16-X
    25 (1”)
    24 (15/16”)
    15 (50')
    FyreJacket Industrial 18-X
    29 (1-1/8”)
    25 (1”)
    15 (50')
    FyreJacket Industrial 20-X
    32 (1-1/4”)
    29 (1-1/8”)
    15 (50')
    FyreJacket Industrial 22-X
    35 (1-3/8”)
    32 (1-1/4”)
    15 (50')
    FyreJacket Industrial 24-X
    38 (1-1/2”)
    35 (1-3/8”)
    15 (50')
    FyreJacket Industrial 26-X
    41 (1-5/8”)
    38 (1-1/2”)
    15 (50')
    FyreJacket Industrial 28-X
    45 (1-3/4”)
    41 (1-5/8”)
    15 (50')
    FyreJacket Industrial 30-X
    48 (1-7/8”)
    45 (1-3/4”)
    15 (50')
    FyreJacket Industrial 32-X
    51 (2”)
    48 (1-7/8”)
    15 (50')
    FyreJacket Industrial 34-X
    54 (2-1/8”)
    51 (2”)
    15 (50')
    FyreJacket Industrial 36-X
    57 (2-1/4”)
    54 (2-1/8”)
    15 (50')
    FyreJacket Industrial 38-X
    60 (2-3/8”)
    57 (2-1/4”)
    15 (50')
    FyreJacket Industrial 40-X
    64 (2-1/2”)
    60 (2-3/8”)
    15 (50')
    FyreJacket Industrial 42-X
    67 (2-5/8”)
    64 (2-1/2”)
    15 (50')
    FyreJacket Industrial 44-X
    70 (2-3/4”)
    67 (2-5/8”)
    15 (50')
    FyreJacket Industrial 46-X
    73 (2-7/8”)
    70 (2-3/4”)
    15 (50')
    FyreJacket Industrial 48-X
    76 (3”)
    73 (2-7/8”)
    15 (50')
    FyreJacket Industrial 50-X
    79 (3-1/8”)
    76 (3”)
    15 (50')
    FyreJacket Industrial 52-X
    83 (3-1/4”)
    79 (3-1/8”)
    15 (50')
    FyreJacket Industrial 56-X
    89 (3-1/2”)
    83 (3-1/4”)
    15 (50')
    FyreJacket Industrial 60-X
    95 (3-3/4”)
    89 (3-1/2”)
    15 (50')
    FyreJacket Industrial 64-X
    102 (4”)
    95 (3-3/4”)
    15 (50')

    X = Color Code: 12 = Red iron oxide

  • Installation Tools

    There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.

  • Product Testing

    Performance Data – FyreJacket® Industrial

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    -54ºC (-65°F) to +260ºC (+500°F)
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.

Other FyreJacket® Products

FyreJacket® 1610

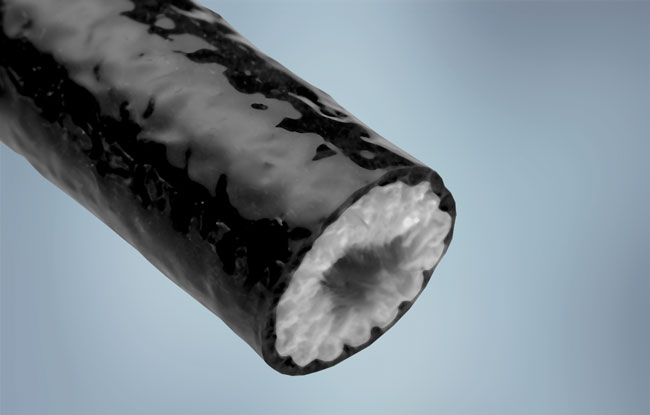

FyreJacket® Aerospace
