THERMFLEX® 1212

Operating temperature up to +540°C (+1004°F)

Excellent thermal insulation

Flame retardant

Fluid and chemical resistant

Lightweight and low profile

Tubular and slit forms

FUNCTION:

Stacks Image 6847
Stacks Image 9447
Open all Close all
  • Product Description
    ThermFlex® 1212 is a heat treated and saturated sleeve that provides superior protection against conducted and convective heat. Constructed of braided fiberglass, ThermFlex 1212 is used in high temperature areas to provide superior insulation to components that must maintain elevated temperatures to maximize performance efficiency. ThermFlex 1212’s saturated coating aides in the handling and installation of the product while also providing an increased level of durability compared to uncoated fiberglass sleeving.

    As an insulator, ThermFlex 1212 is used on Exhaust Gas Recirculation (EGR) tubes, thermactor tubes and exhaust system components to provide maximum fuel efficiency and lowered emissions.

    ThermFlex 1212 is also used on wire harnesses, fuel and hydraulic lines, cables and hoses in close proximity to engines and exhaust systems. Its braided construction allows excellent flexibility in temperatures as low as -70ºC (-94ºF).

    Stacks Image 9457

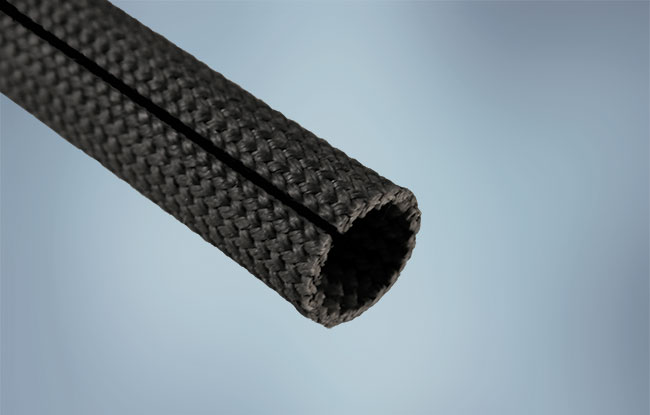

    ThermFlex 1212 is available in a slit version for increased installation benefit
  • Typical Applications

    • Wire harnesses
    • Fuel and hydraulic lines
    • Cables and hoses near engines and exhaust systems
    • Exhaust Gas Recirculation (EGR) tubes
    • Exhaust system component protection

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Fiberglass multifilament
  • Sizes / Availability


    Availability

    ThermFlex 1212 is available in a range of sizes and cut to your specification. Color is black. Please contact your sales representative for availability.

  • Product Testing

    Performance Data - ThermFlex® 1212

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +540°C (+1004°F)
    Pass +540°C (+1004°F)
    Low Temperature Flexibility
    BH100-016A
    Pass -70°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    BH100-003B
    Pass

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
