HOOKIT™

Operating temperature from -70°C to +125°C (-94°F to +257°F)

UL recognized component

Wrappable design

Secure closure

Easy to apply and remove

Ideal for reworking components without disconnecting them

Highly flexible

Does not trap heat or humidity

Also available laminated with a reflective foil. Please consult factory for more information about HookIt™ AL

FUNCTION:

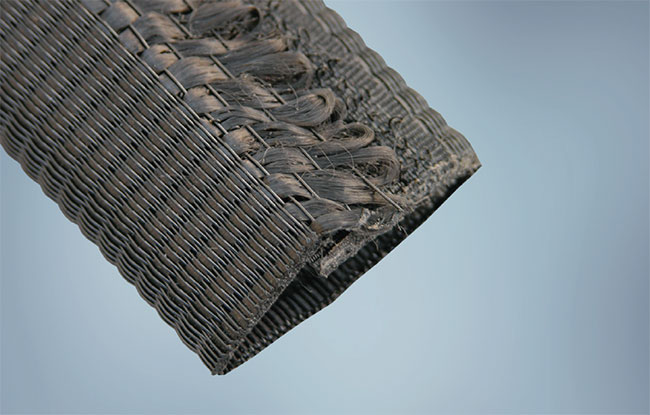

Stacks Image 6847
Open all Close all
  • Product Description

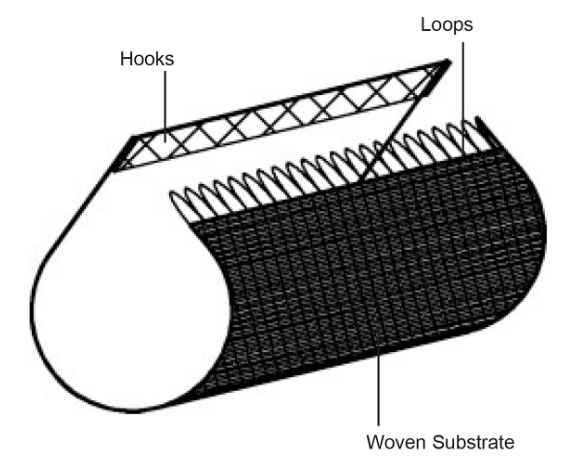

    Hookit™ is a lightweight, damage-resistant sleeving used to protect and dress wiring and hose assemblies. Its patented hook and integral loop closing feature eliminates the need for an open end for installation. Hookit oversleeve permits quick and easy access for inspection, rework or replacement of components.

    The 100% polyester product is comprised of PET monofilament warp strands and PET multifilament weft strands which form the integral loop. The hook portion of the product is secured to the sleeving with a polyester thread.

    Hookit oversleeve can easily be applied to even very long lengths of cable or hose runs. It can be applied without an open end, and easily removed and re-applied. Hookit is ideally suited for cost-effective Iong length detached harness oversleeving, especially on larger sizes. In addition, post-assembly or retrofit applications can be made without removing end hardware and without circuit disturbance or service interruption. It may also be used when experience indicates a need to acid protective sleeving or cosmetic covering on specific segments of wiring already installed.

    Hookit has many applications in the marine, rail, automotive, electronic and general manufacturing industries.
  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Recommended Application Range mm
    Max Weight
    g/m (lbs/ft)
    Standard Packaging
    m (ft)
    HookIt 13-0
    Up to 13
    24.97 (0.0167)
    50 (164')
    HookIt 19-0
    Up to 19
    32.15 (0.0215)
    50 (164')
    HookIt 25-0
    Up to 25
    28.04 (0.0255)
    50 (164')
    HookIt 32-0
    Up to 32
    44.71 (0.0299)
    50 (164')
    HookIt 38-0
    Up to 38
    51.62 (0.0346)
    50 (164')
    HookIt 45-0
    Up to 45
    59.23 (0.0397)
    50 (164')
    HookIt 51-0
    Up to 51
    72.51 (0.0486)
    50 (164')

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    HookIt
    19
    0 (black)
    50m (164ft)
    Stacks Image 8564
  • Product Testing

    Performance Data - HookIt™

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    -70ºC to +125ºC (-94°F to +257°F)
    Melt Temperature
    ASTM D-3418
    +250°C (+482°F)
    Low Temperature Flexibility
    MIL-DTL-23053E
    -70°C (-94°F)
    Smoke Density
    ASTM E-1354
    Dmc = 1.44
    Copper Corosivity
    MIL-DTL-23053
    No effect

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.



    Availability
    Standard sizes are listed here, Additional sizes could be available upon request.

    Available in spools and custom cut lengths. Recommended cut lengths are in 5mm increments. Please see regional drawings for cut length tolerances.

    Standard color is black.

    Please consult your local sales representative for regional packaging details and standards.TwistTool is available as an installation aid for sizes 5, 8 and 13 mm.
