EXPANDO® 2623 & EXPANDO® 2623 PLUS

Operating temperature from -70°C to +125°C (-94°F to +257°F)

UL 1441 VW-1

F.A.R. Part 25 (Expando 2623 Plus)

Does not trap heat or humidity

Rot-free

Expandable design accommodates a variety of sizes

FUNCTION:

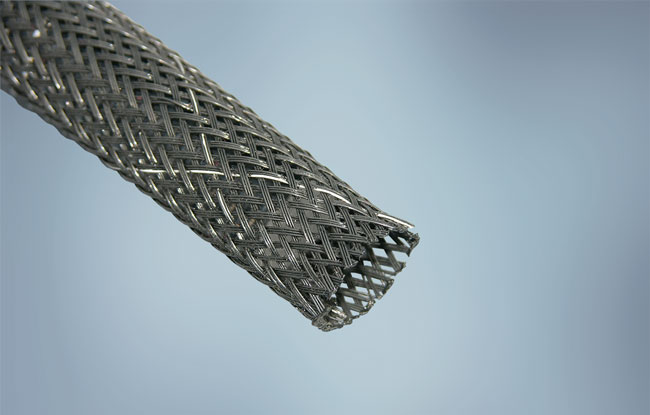

Stacks Image 6847
Open all Close all
  • Product Description
    Expando® 2623 & Expando® 2623 Plus Black with a White Tracer are expandable sleeves constructed of flame retardant monofilaments that are designed for applications up to +125ºC (+257ºF). They both meet the flammability requirements of VW-1 and FAR Part 25.
    Expando 2623 Plus balances the properties of mechanical and thermal stability with economy. The patented Bentley-Harris Plus treatment makes end termination neater and easier. The Plus treatment creates a webbing between the filaments of the sleeving to reduce end-fray during installation, allowing Expando 2623 Plus to be cut with ordinary scissors. This reduces assembly time and eliminates the need for proper ventilation equipment required for hot-knife cutting.

    Expando 2623 & Expando 2623 Plus Black with a White Tracer protective oversleeves have many applications in the electronics, marine, and general manufacturing industries. The ability of these sleeves to retain flexibility at low temperatures makes them ideal for exposed applications in weather stations, navigation beacons, radar antennas, and airborne and space systems.

    Expando products are tough, lightweight oversleeves used to protect cable assemblies, hoses and wire harnesses from chafing, cutting and abrading. The open-braid construction of Expando products enables each size to expand to fit several application shapes and diameters. This open-textile construction also makes them highly flexible and resistant to trapping water, heat and humidity.
  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Max Weight
    g/m (lbs/ft)
    Standard Packaging
    m (ft)
    Expando 2623 Plus 3-0/9
    Expando 2623 3-0/9
    3 (1/8")
    7.5 (5/16")
    3.55 (0.0024) 3.44 (0.0023)
    610 (2000')
    Expando 2623 Plus 6-3-0/9
    Expando 2623 6-3-0/9
    4 (1/6")
    13 (1/2")
    6.18 (0.0042) 5.89 (0.0040)
    305 (1000')
    Expando 2623 Plus 10-3-0/9
    Expando 2623 10-3-0/9
    6 (1/4")
    14 (9/16")
    11.91 (0.0080) 11.70 (0.0079)
    152 (500')
    Expando 2623 Plus 13-3-0/9
    Expando 2623 13-3-0/9
    10 (3/8")
    25 (1")
    12.65 (0.0085) 12.60 (0.0085)
    152 (500')
    Expando 2623 Plus 19-3-0/9
    Expando 2623 19-3-0/9
    16 (5/8")
    37 (1-7/16")
    19.64 (0.0132)
    19.64 (0.0132)
    152 (500')
    Expando 2623 Plus 32-3-0/9
    Expando 2623 32-3-0/9
    19 (3/4")
    45 (1-3/4")
    26.19 (0.0176)
    26.19 (0.0176)
    76 (250')
    Expando 2623 Plus 45-3-0/9
    Expando 2623 45-3-0/9
    23 (15/16")
    58 (2-5/16")
    44.20 (0.0297)
    44.20 (0.0297)
    76 (250')
    Expando 2623 Plus 51-3-0/9
    Expando 2623 51-3-0/9
    38 (1-1/2")
    89 (3-1/2")
    54.02 (0.0363)
    54.02 (0.0363)
    76 (250')
    Expando 2623 Plus 64-3-0/9
    Expando 2623 64-3-0/9
    45 (1-3/4")
    114 (4-1/2")
    67.12 (0.0451)
    61.88 (0.0416)
    76 (250')

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    Expando 2623 Plus
    3
    0/9 (black with white tracer)
    610m (2000 ft)
  • Product Testing

    Performance Data - Expando® 2623

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    -70ºC to +125ºC (-94°F to +257°F)
    Low Temperature Flexibility
    MIL-DTL-23053E
    -70°C (-94°F)
    Flammability
    UL 1441
    VW-1
    Flammability
    F.A.R. Part 25
    Pass

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.

    Expando sleeving products made with the patented “Plus” treatment should not be used in hard vacuum environments nor immersed in solvents or liquids where Plus particulates could contaminate the system environment. Consult Systems Protection for information on protection products for these applications.
