THERMFLEX® 1226

Operating temperature -50°C to +550°C (-58°F to +1022°F)

Expandable tubular sleeve

Excellent thermal insulation

Non-fraying construction

Self-extinguishing

Easy to apply

FUNCTION:

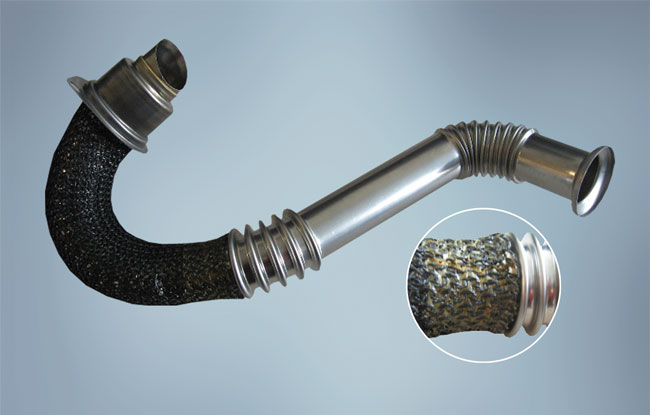

Stacks Image 6847
Open all Close all
  • Product Description
    ThermFlex™ 1226 is a heat-treated sleeving that provides superior protection against conducted and convected heat. Constructed of knitted fiberglass, ThermFlex 1226 is used to protect components in high temperature areas.

    Due to its knitted construction, ThermFlex 1226 is easy to install with its excellent flexibility and expandability characteristics. The ends of the sleeve are treated. This process avoids the ends from fraying and particles from spreading. It also provides superior insulation to components that must maintain elevated temperatures to maximize performance efficiency.

    ThermFlex 1226 is also used on fuel and hydraulic lines, cables and hoses proximity to engines and exhaust systems.
  • Typical Applications

    • Exhaust Gas Recirculation (EGR) tubes
    • Exhaust system component
    • Hoses & tubings

  • Datasheet Downloads
  • Sizes / Availability

    Standard Sizes

    Size
    Recommended Application Range (mm)
    Min Ø
    Max Ø
    21

    19

    23
    25

    23

    27
    27

    25

    29


    Availability

    ThermFlex 1226 is available in a range of sizes and cut to your specification. Standard color is black. Please contact your sales representative for availability.

  • Product Testing

    Performance Data - ThermFlex® 1226

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    -50°C to +550°C (-58°F to +1022°F)
    Heat Aging: 240hrs at +575°C
    ISO 6722-1
    No visible damage or degradation
    Flammability
    FMVSS 302
    D45 1333
    Pass
    Self extinguishing Type B
    Fluid Resistance
    D47 1924
    No visible degradation or alteration after being exposed to the following test cycles:

    • Immersion for 15s at 23°C, followed by a drying period of:
      • 24h at 150°C: motor oil, automatic transmission fluid, manual transmission oil.
      • 24h at 23°C: zinc chloride, brake fluid.

    • Immersion for 48h at 70°C, followed by a drying period of:
      • 24h at 23°C: Urea of clean up Ad blue.

    • Immersion for 24h:
      • At 40°C, followed by a drying period of 4h at 23°C: for gazole, unloaded petrol 98, Std fuel C + 15% methanol, E85 bio ethanol.
      • At 70°C, followed by a drying period of 4h at 23°C, for windscreen washer.
      • At 118°C, by a drying period of 4h at 23°C, for engine coolant.
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
